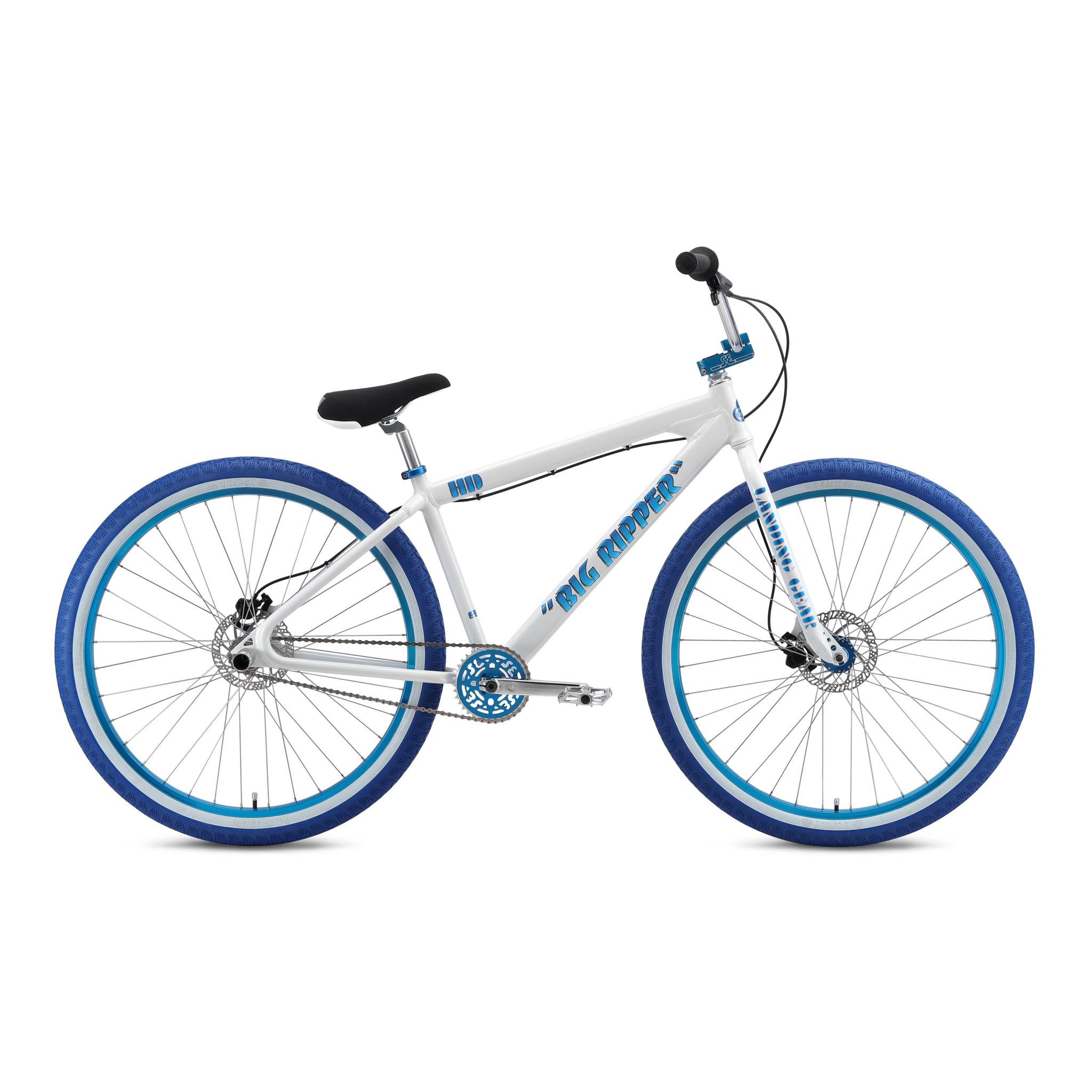

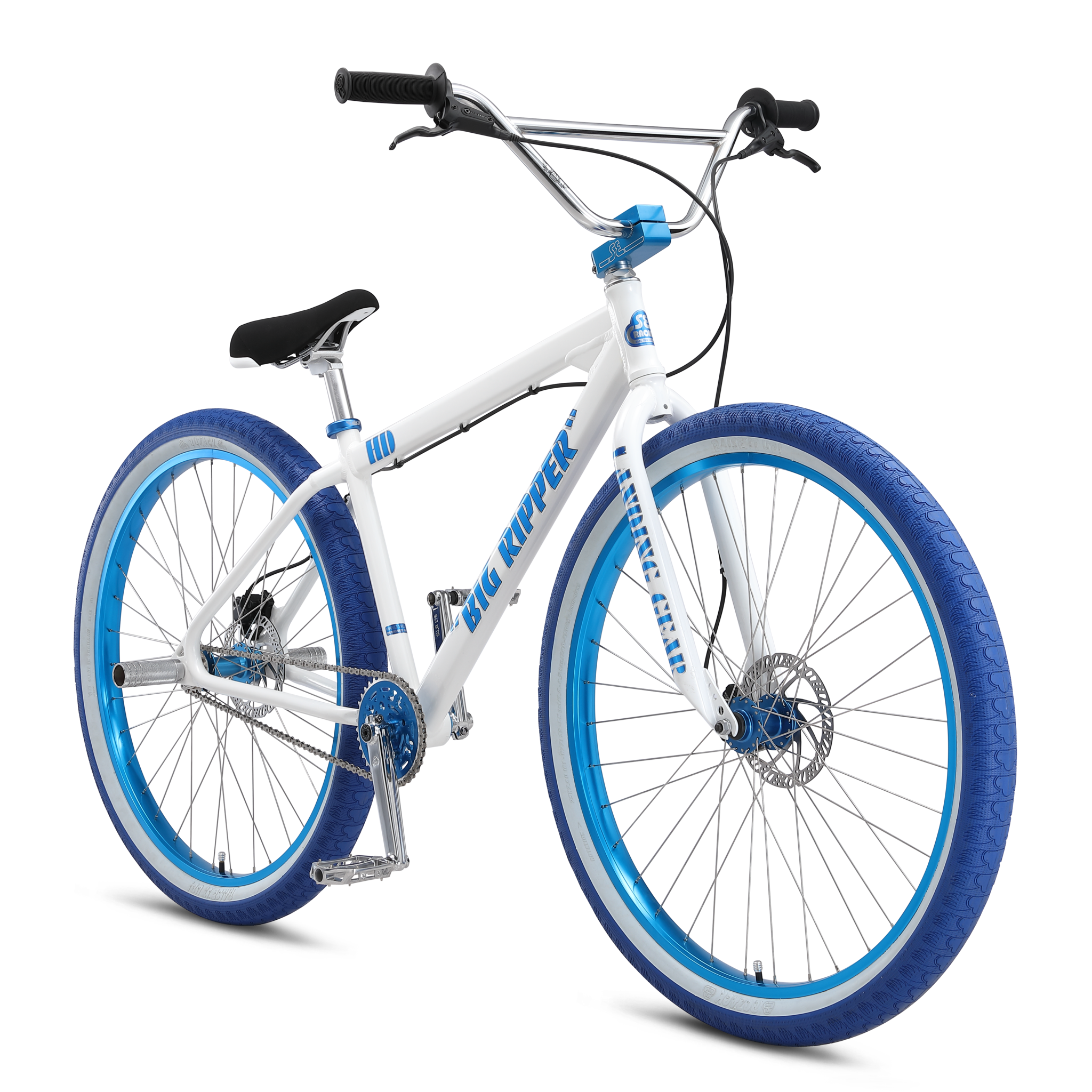

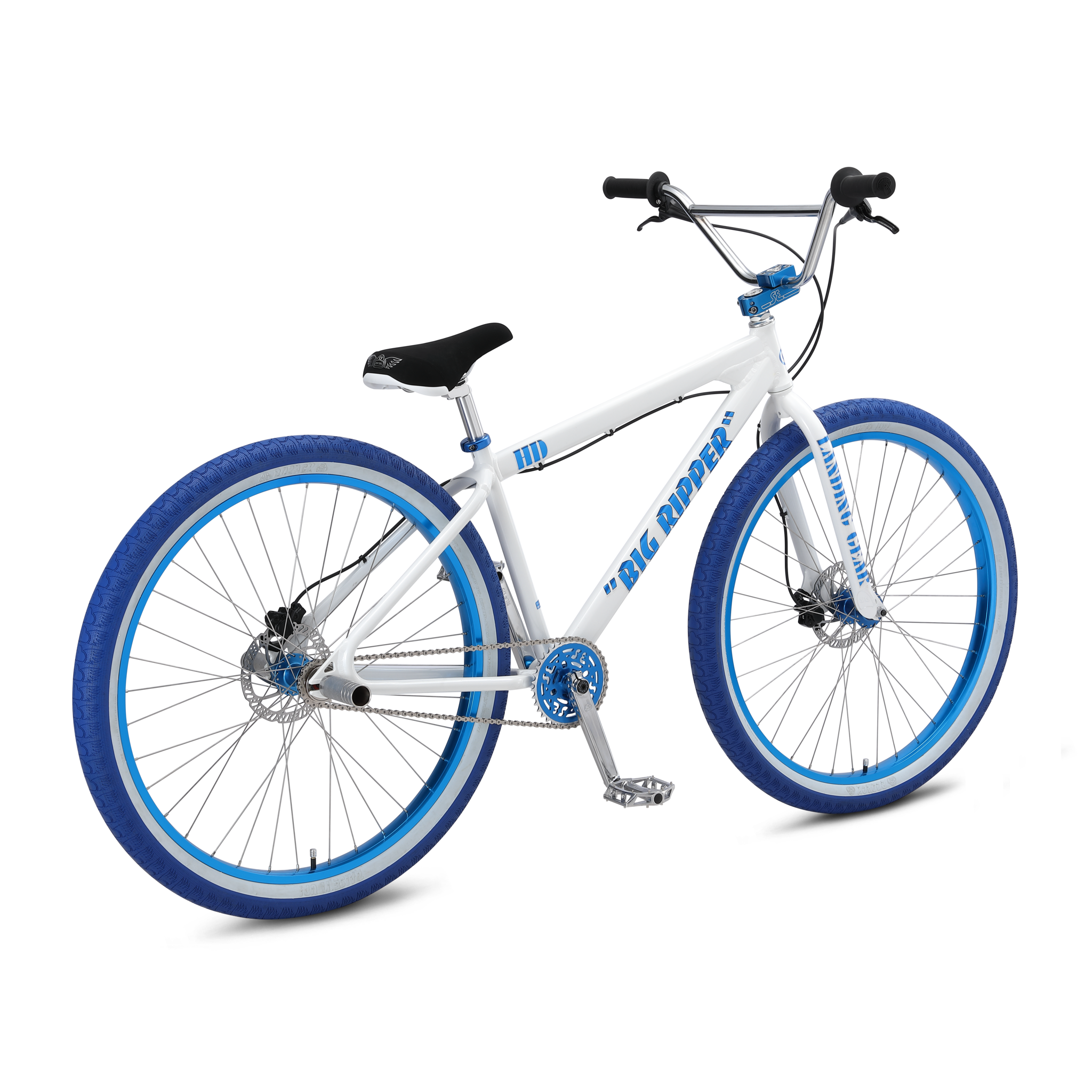

Big Ripper HD 29"
Description
We really upped the ante with the 29" Big Ripper HD. This bad boy comes equipped with Tektro hydraulic disc brakes and a LOUD 9-pawl freewheel. The frame features an internally machined integrated head tube, Floval Tubing, looptail rear end, American bottom bracket, and classic PK Ripper style wishbone plate. Combine all of this with the super grippy SE Bozack tires and this very well may be the raddest Big Ripper yet.
Ship to Home Return Policy
Item(s) in new, unassembled, unused condition and with all original packaging, hangtags, and parts will be eligible for a refund when returned within 30 days of purchase. Return shipping fees apply.
Ship to Store Return Policy
Bicycles can be returned at time of pick-up only. After leaving the store with your assembled bicycle the sale is final. It’s up to the seller you purchased from to initiate the return. Restocking fee may apply.
Congratulations on your new SE Bike! SE bikes ship partially assembled from the factory. We always recommend that a trained mechanic build your bike, but if you follow this guide and take your time, you can build the bike yourself. Always ask an experienced mechanic about any steps you're unsure of.

KEY FEATURES
SPECIFICATIONS

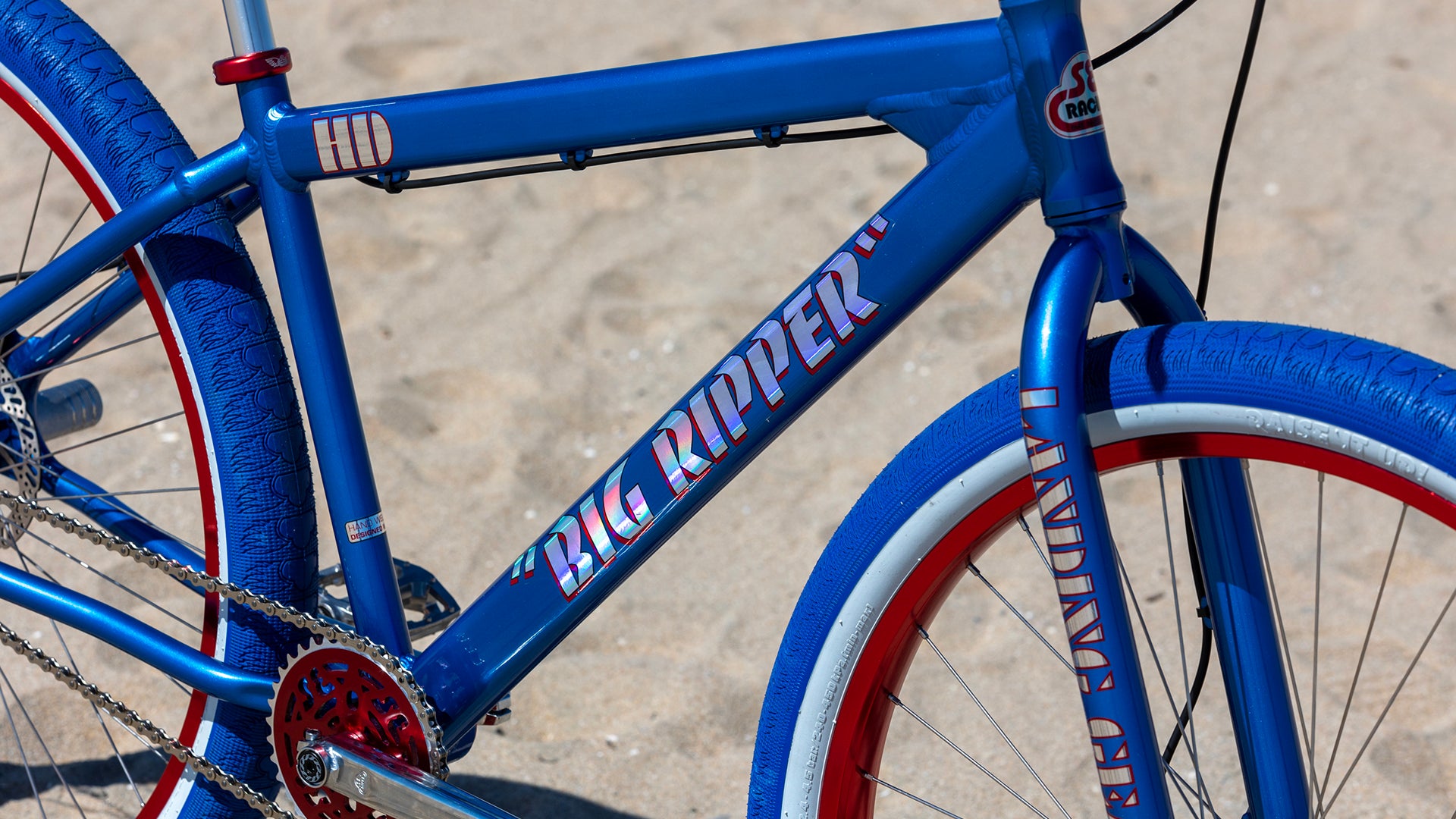

Frame | 6061 Aluminum Floval Tubing, Internally-machined Integrated Head Tube, Looptail Rear End, 68mm American Bottom Bracket, Wide Rear Stays, Retro Dropouts |
Fork | Landing Gear, Full Cr-Mo, Disc Tabs |
Crankset | SE V-Ridge 3-pc Cr-Mo Cranks, 175mm, Sealed American Bottom Bracket, 160mm Spindle Length, 19mm Spindle Diameter, 36T Alloy SE Racing Sprocket |
Pedals | X-Pedo Low-profile Platform w/ Removable Pins |
Chain | KMC S1 |

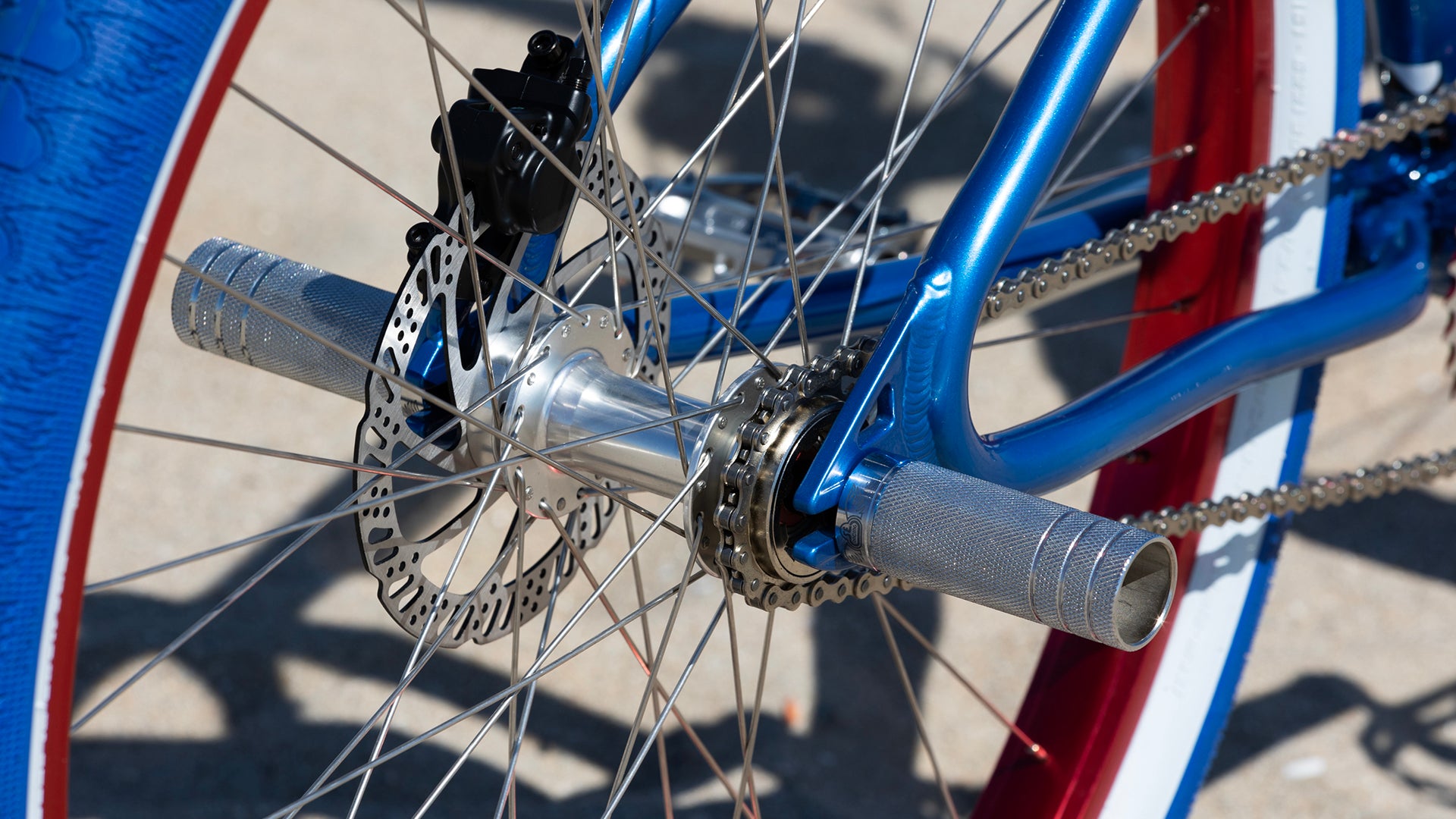

Wheelset | SE Racing Alloy 36H Disc Hubs, 100mm Front Hub, 135mm Sealed Rear Hub, w/ Double-wall Rims, 17T 9-Pawl, 108 clicks LOUD Freewheel |
Tires | SE Bozack, Street Proven Multi Purpose Compound, Wrap Around Urban Tread Pattern, Grooved SE Wing Logo, 29" x 2.4" Front & Rear |
Brakeset | Tektro HD-M285, Hydraulic Disc, Easy to Adjust Open System, Dual Piston, Automatic Caliper Positioning, 160mm Rotors |
Brake Levers | Tektro HD-M285, 2-Finger Alloy, Front & Rear |
Headset | FSA Integrated Orbit CE, Sealed 1-1/8" |

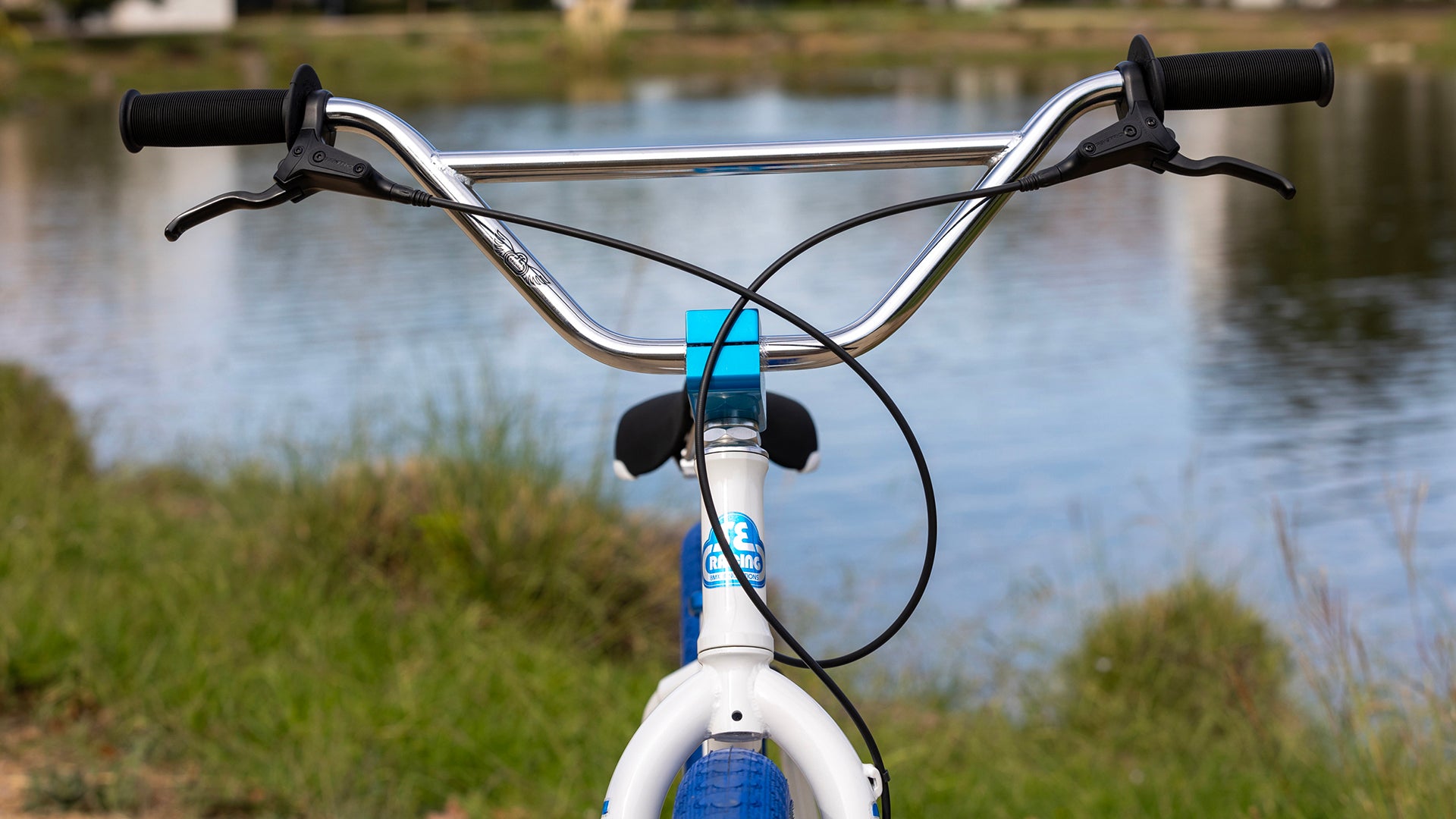

Handlebar | Big Honkin' Cr-Mo Cruiser Bar, 29" x 7", 12° Backsweep, 2° Upsweep |
Stem | Retro Alloy Top-Load w/ Engraved SE Logo on Top & Sides, 55mm Reach |
Grips | Special Edition ODI Mushroom II Dual-Ply Grips, Made in USA |

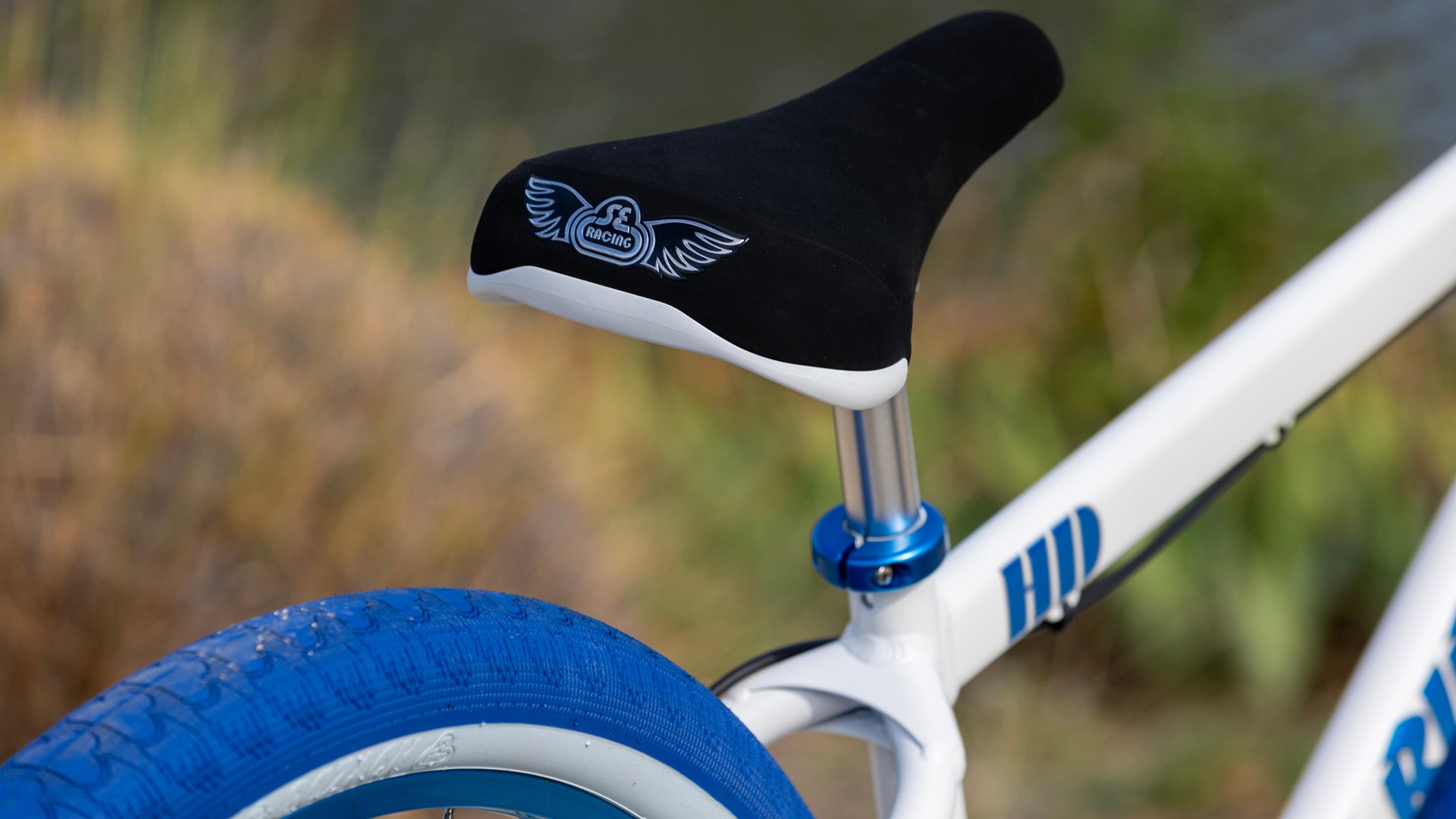

Seat | SE Flyer Seat w/ Custom SE Bottle Opener Brace |
Seatpost | Micro-Adjust Alloy, 27.2mm |
Seat Clamp | SE Racing Champ Clamp, Alloy, 31.8mm Inner Diameter |

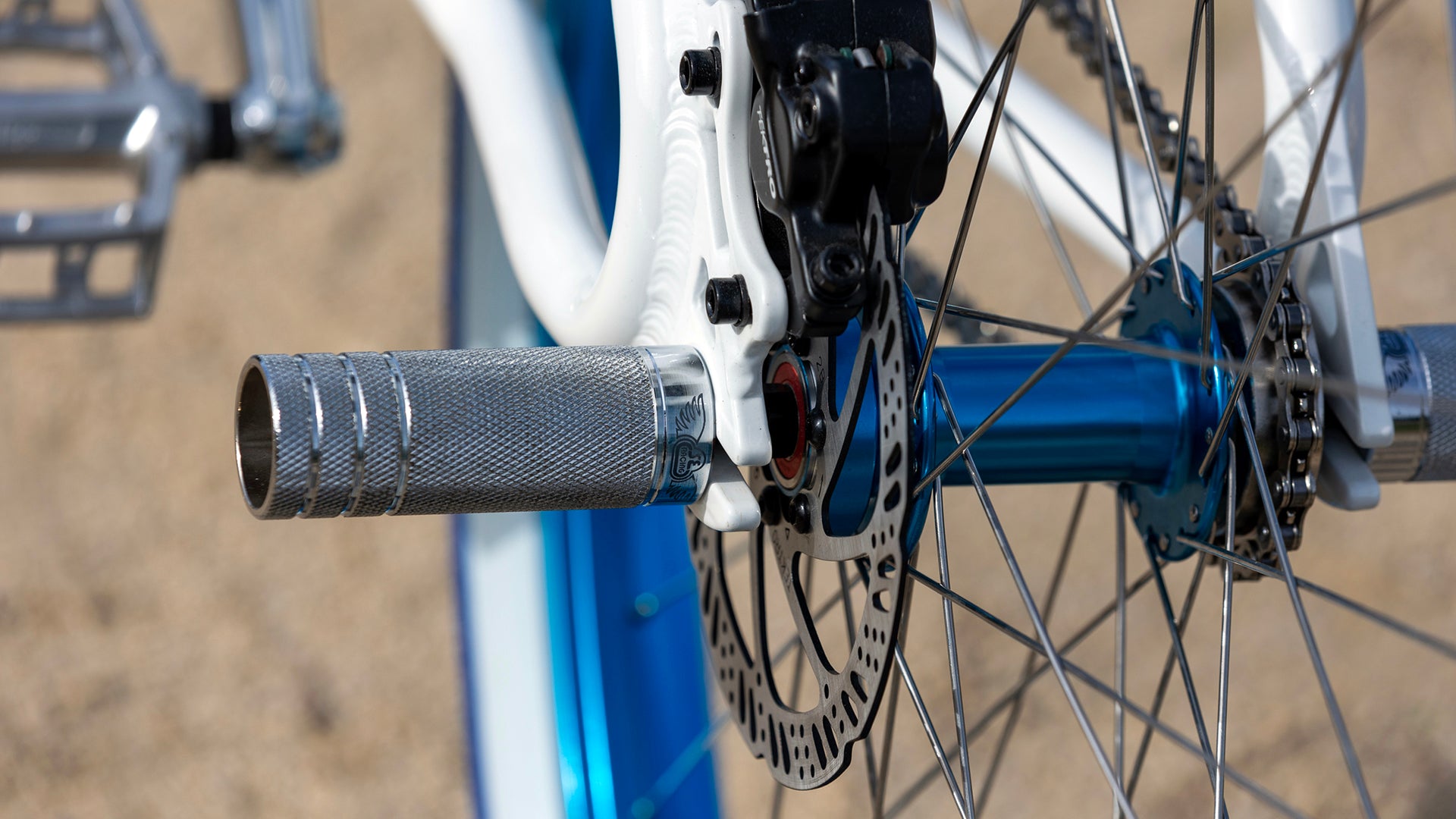

Accessories | Alloy Valve Caps, SE Wheelie Pegs |
GEOMETRY
A | Top Tube, Actual | 23.6" |
B | Seat Tube, Center To Top | 16.9" |
C | Seat Tube Angle | 71 |
D | Head Tube Angle | 71 |
E | Chainstay Length | 18." |
F | Wheelbase | 43.4" |
G | Bottom Bracket Height | 12.24" |
H | Standover | 30.9" |
Suggested Rider Size | 5'5"+ (165cm+) | |
Stem | 48mm | |
Handlebar Width | 30" | |
Crank | 175mm | |
Wheel Size | 29" | |
Seat Post Diameter | 27.2mm |
