Monster Quad 29"+
Description
The Monster Quad is the ultimate definition of BMX Innovations. Built around huge 29” x 2.8” Vee Speedster tires, this bike is the world’s first 29+ BMX bike. The unique Monster Quad frame design features an oversized downtube, integrated headset, super stiff BB yoke, and a legendary looptail rear end. Watch out now, it’s a MONSTER!
Ship to Home Return Policy
Item(s) in new, unassembled, unused condition and with all original packaging, hangtags, and parts will be eligible for a refund when returned within 30 days of purchase. Return shipping fees apply.
Ship to Store Return Policy
Bicycles can be returned at time of pick-up only. After leaving the store with your assembled bicycle the sale is final. It’s up to the seller you purchased from to initiate the return. Restocking fee may apply.
Congratulations on your new SE Bike! SE bikes ship partially assembled from the factory. We always recommend that a trained mechanic build your bike, but if you follow this guide and take your time, you can build the bike yourself. Always ask an experienced mechanic about any steps you're unsure of.
KEY FEATURES

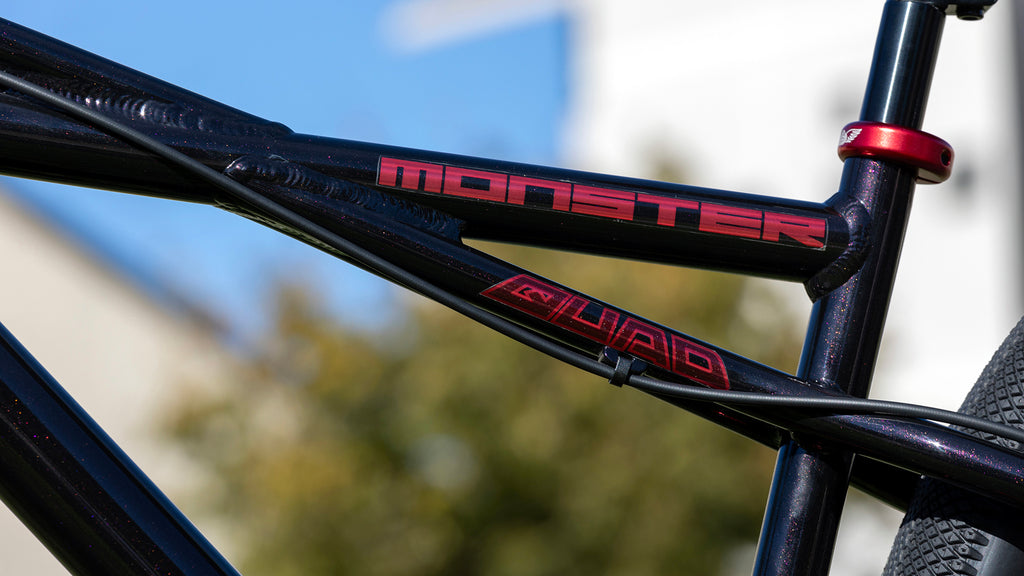

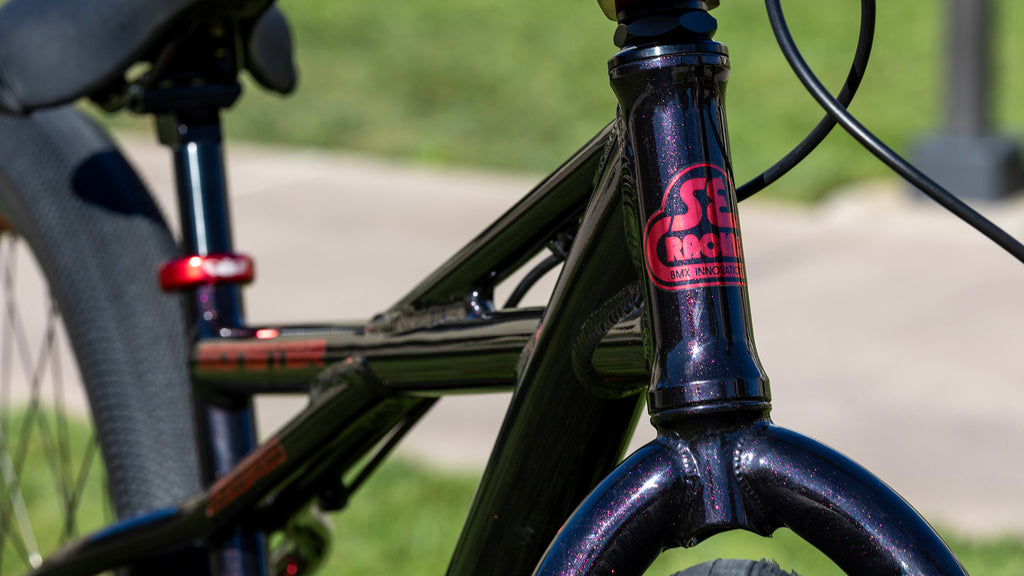

- 6061 Aluminum Monster Quad frame with oversized downtube, integrated headset, and looptail rear end
- Full Cr-Mo Landing Gear forks
- SE Racing forged alloy 2-piece cranks with 24mm hollow alloy spindle, external sealed bearing bottom bracket, and alloy chainring
- FSA Orbit CE integrated sealed bearing headset
- Vee Tire Co x SE Racing Speedster 29" x 2.8" tires

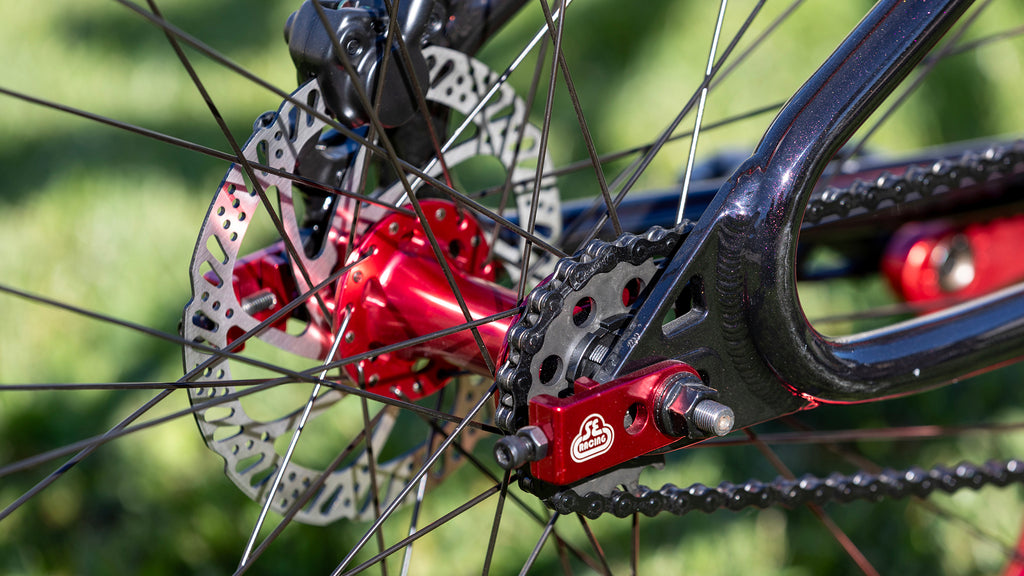

- Tektro hydraulic disc brakes with easy to adjust open system, dual piston, 160mm rear rotor, 180mm front rotor
- Authentic ODI Mushroom II grips
- Monster Flyer seat with bottle opener
- 34 pounds
SPECIFICATIONS
| Color(s) | Black Sparkle |
| Frame | 6061 Aluminum, Single Downtube Monster Quad Design, Internally-machined Integrated Head Tube, Looptail Rear End, Retro Dropouts, 73mm Euro Bottom Bracket, 142mm Spaced Dropouts, Disc Brake Tabs |
| Fork | Landing Gear, Full Cr-Mo, Disc Tabs, 445mm Axle to Crown, 39mm Offset, 110mm Spaced Dropouts |
| Crankset | SE Racing 175mm Forged Alloy 2-pc Cranks, Pedal Boss Inserts, External Sealed Euro Bottom Bracket, 24mm Hollow Alloy Spindle, 39T Alloy Chainring |
| Pedals | X-Pedo Low-profile Platform w/ Removable Pins |
| Chain | KMC S1 |
| Wheelset | Alloy 36H Nutted Hubs, Sealed Rear, 110mm Front Hub & 142mm Rear Hub, w/ 42mm Double-Wall Disc Rims, 20T Cassette, Stainless Spokes |
| Tires | Vee Tire Co x SE Racing Speedster, 29" x 2.8" Front & Rear |
| Brakeset | Tektro HD-M285 Hydraulic Disc, Easy to Adjust Open System, Dual Piston, Automatic Caliper Positioning, 180mm Front Rotor, 160mm Rear Rotor |
| Brake Levers | Tektro HD-M285, 2-Finger Alloy, Front & Rear |
| Headset | FSA Integrated Orbit CE, Sealed 1-1/8" |
| Handlebar | Big Honkin' Cr-Mo Cruiser Bar, 29" x 7", 12° Backsweep, 2° Upsweep |
| Stem | Retro Alloy Top-Load w/ Engraved SE Logo on Top & Sides, 55mm Reach |
| Grips | Special Edition ODI Mushroom II Dual-Ply Grips, Made in USA |
| Seat | Monster Flyer Seat w/ Custom SE Bottle Opener Brace |
| Seatpost | Micro-Adjust Alloy, 27.2mm |
| Seat Clamp | SE Racing Champ Clamp, Alloy, 31.8mm Inner Diameter |
| Accessories | Alloy Valve Caps, SE Chain Tensioners |
| Weight | 34 lbs / 15.42 kgs |
GEOMETRY
| A | Top Tube, Actual | 23.5" | |||||||||
| B | Seat Tube, Center To Top | 16.9" | |||||||||
| C | Seat Tube Angle | 71° | |||||||||
| D | Head Tube Angle | 71° | |||||||||
| E | Chainstay Length | 18.3" | |||||||||
| F | Wheelbase | 43.9" | |||||||||
| G | Bottom Bracket Height | 13" | |||||||||
| H | Standover | 30.5" | |||||||||
| Stem | 55mm | ||||||||||
| Handlebar Width | 29" | ||||||||||
| Crank | 175mm | ||||||||||
| Wheel Size | 29" | ||||||||||
| Seat Post Diameter | 27.2mm |
HOW TO BUILD YOUR NEW SE BIKE!
SE bikes ship partially assembled from the factory. We always recommend that a trained mechanic build your bike, but if you follow this guide and take your time, you can build the bike yourself.
